Sale

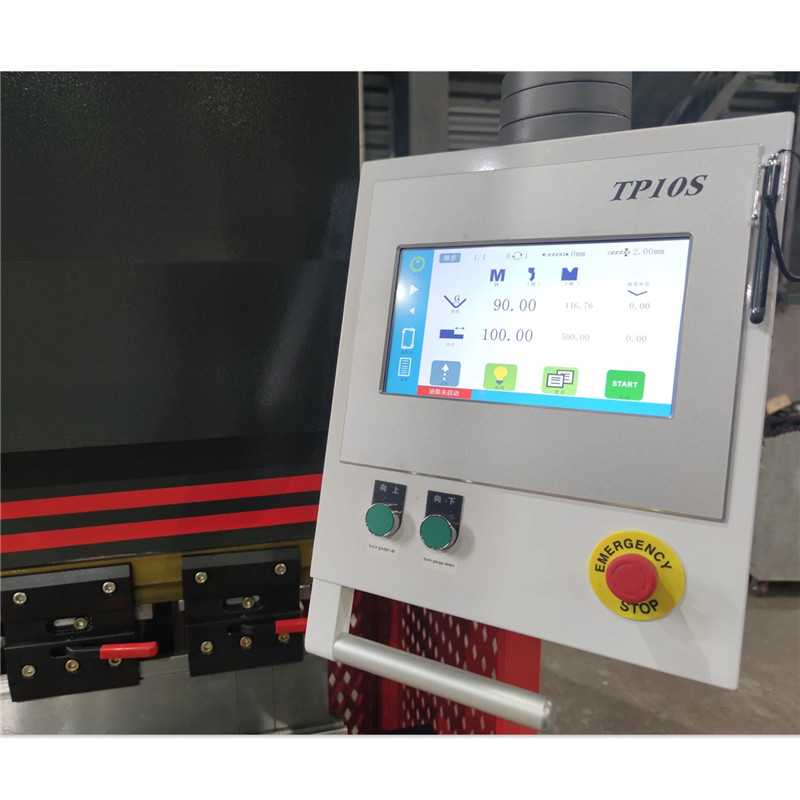

High Quality TP10S System Machine Hydraulic Press Brake Plate Bending Machine
$7,150.00
In StockMain Features
All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to
fully guarantee the intensity and rigidity of all the components.
2.The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption
reduction.
3.The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design
and produce style can ensure the machine usage and high precision.The main produce procedure as below(all process under strictly
inspection)
4.Plate stock—-physical and chemical inspection—-Plate Pre-treatment (Rust-Cleaning) — CNC flame Cutting– Cutting the
welded joint—-Group Welding—-Gas Shielded Welding—Ageing treatment—-Milling Planer working—-The Assembly of finished
products
5.The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and
milling machine to ensure several geometric accuracy of the main machine.
6.The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded
situation. Working table, Upright Column, Crossbeam and Ram are good and high in design rigidity. Little deformation between the
working table and ram when work to guarantee good straightness and uniformity in angle
Description
TP10S System Machine Hydraulic Press Brake Plate Bending Machine
Product Description

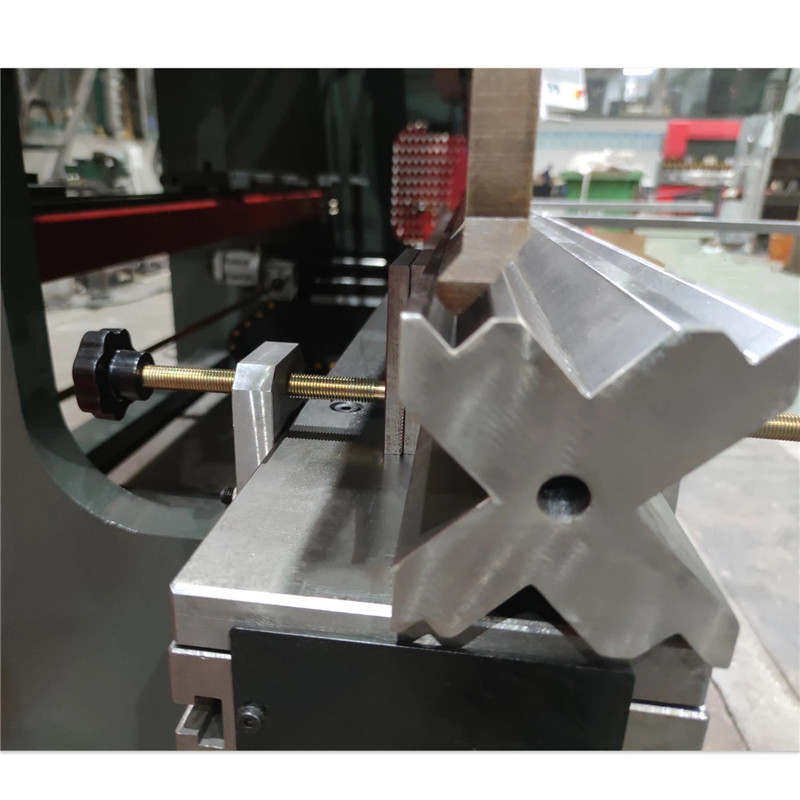

Press brake is a kind of machine specially in bending plate, mainly used in automotive manufacturing, kitchen appliance manufacturing, electricity poles, lamp posts,ship-building, military industry, steel industry, mechanical manufacturing. Bending dies can be designed and changed according to customers’ different needs.Main types of press brake produced by our company are: manual torsion, CNC torsion press brake, electro-hydraulic press brake, large electro-hydraulic synchronization press brake Currently, we have press brake equipment of 1000T/10000, production for many years, and stable performance.
