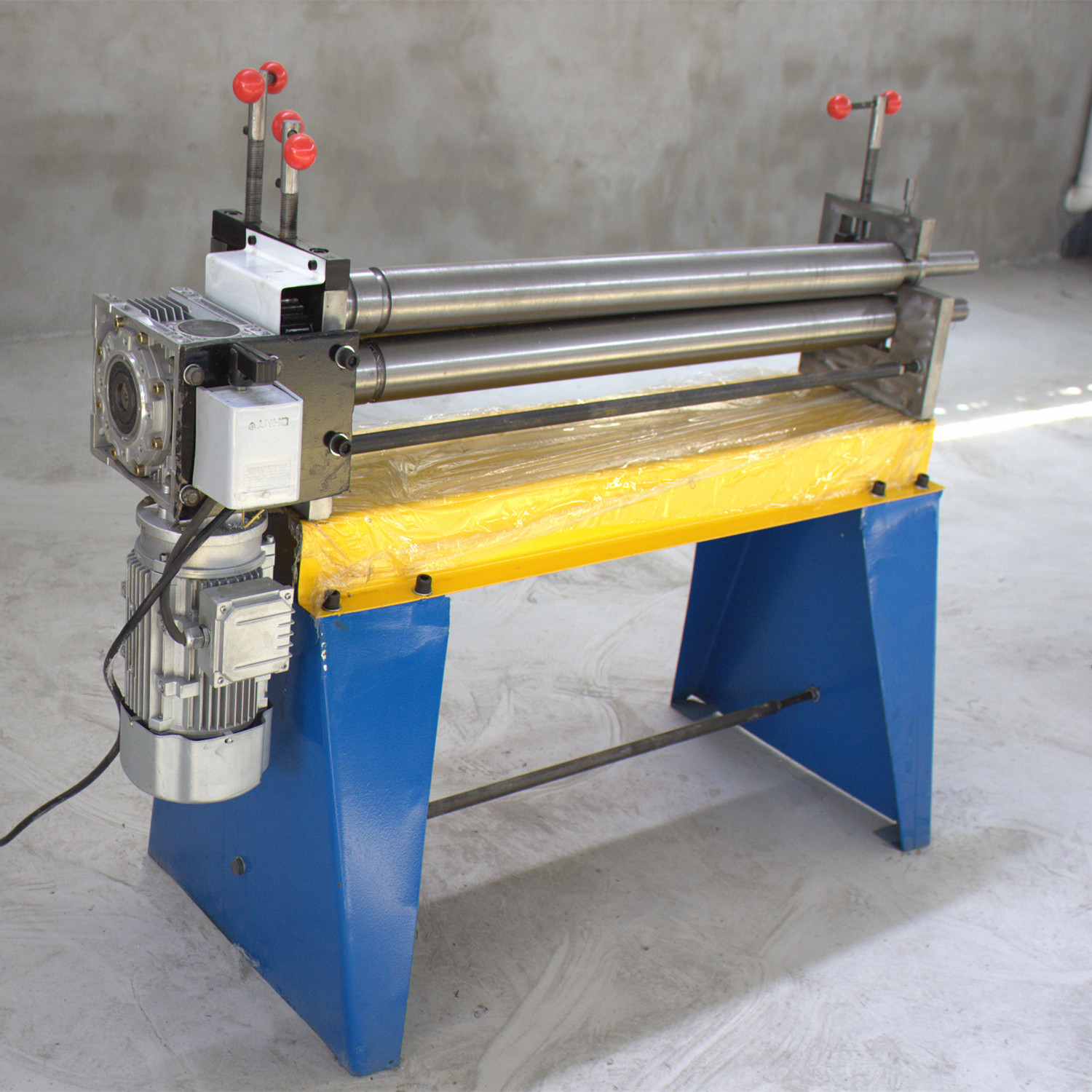

Simple Operation Sheet Bending Machine /Plate Symmeetrical 3-roller Rolling Machine / Electric Rolling Machine
$950.00
In StockMain Features:
(1) Side of the workpiece before use in the pre-bending machine for bending to the effective point of view (when the original
board processing)
(2) To make the next roll rotation, bring materials on board with the rotating roll, the sheet metal rolled into the arc.
(3) The motor for positive and negative movement, and gradually roll on the pressure, repeatedly, thereby enabling the
workpiece gradually forming to requirements.
(4) Taking out the workpiece from the rolling roller.
Description
Simple Operation Sheet Bending Machine /Plate Symmeetrical 3-roller Rolling Machine / Electric Rolling Machine
3-roller electric roll bending machine is adapted to processing metal sheet of 2.0mm thickness, Â and the length of the sheet should
be within 2000mm.It is extensively applied in ventilation piping, petroleum piping, heat preservation,and dust palliative.
Related products
-
Compare

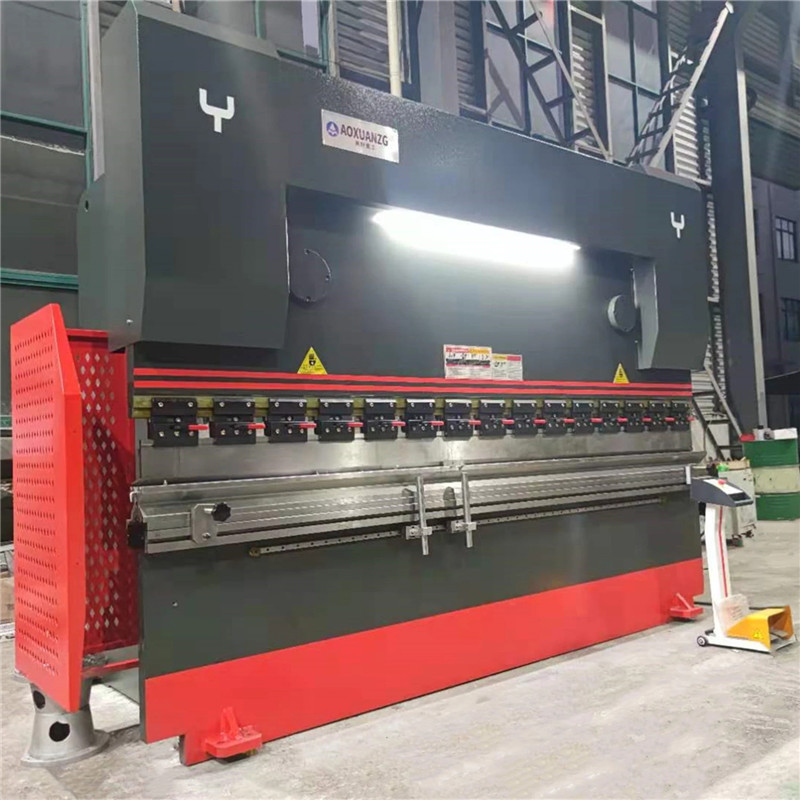

Main Features
All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to
fully guarantee the intensity and rigidity of all the components.
2.The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption
reduction.
3.The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design
and produce style can ensure the machine usage and high precision.The main produce procedure as below(all process under strictly
inspection)
4.Plate stock—-physical and chemical inspection—-Plate Pre-treatment (Rust-Cleaning) — CNC flame Cutting– Cutting the
welded joint—-Group Welding—-Gas Shielded Welding—Ageing treatment—-Milling Planer working—-The Assembly of finished
products
5.The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and
milling machine to ensure several geometric accuracy of the main machine.
6.The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded
situation. Working table, Upright Column, Crossbeam and Ram are good and high in design rigidity. Little deformation between the
working table and ram when work to guarantee good straightness and uniformity in angle$7,150.00 -
Compare

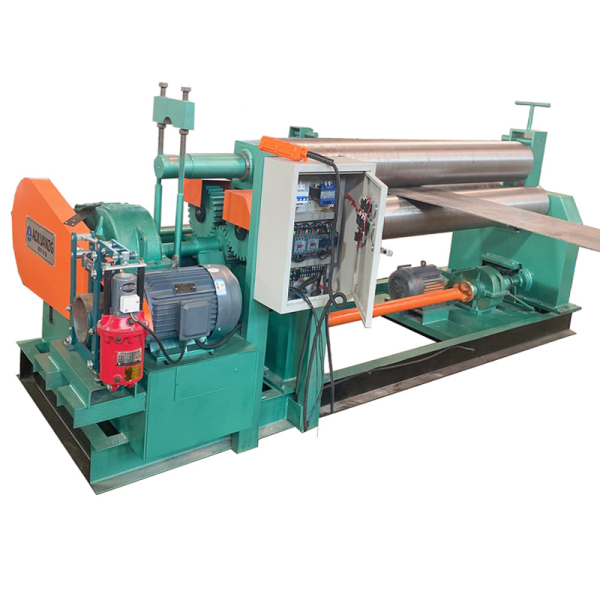

Mechanical 3 Roller Plate Sheet Metal Rolling Bending Machine with Factory Price
The main components of the machine
The shaft roller is the main part of the rolling machine. Its upper roller diameter is 130mm, the lower roller diameter is 120mm, and the working length is 1600mm.The frame is divided into a left frame and a left frame, which are fixed on the base with bolts, and the reducer is driven by a motor to drive the lower roller.
$7,990.00 -
Compare
Super Auto Duct Line 4 Air Hose Blast Pipe Sheet Metal Square Processing Tools CNC HAVC Making Production Machine
Main Import Configuration:
1.Cylinder inported form Germany Festo
2.Beijing Huade plus hydraulic system fo Taiwan
3.Germany’s Siemens system
4.Taiwan Hiwin linear guideways
5.Schneider electrical system
Basic Configuration
1.Two electnic coil cradles ,4 material trays(5-7t each roll)
2.One rack
3.One host(line 2 host)
4.One mechanical arm clutching ,locating and transferring platform
5.One displacement type locking machine
6.One duplex TDF flange forming machin
7.One duplex angle steel flange forming machine
8.One set of computer controlling system
$34,750.00 -
Compare
8×3000 Thickness Semi-Automatic Mechanical Rolling Bending Forming Machine for 8MM Metal Plate Processing Production Tool Sale
The main components of the machine
The shaft roller is the main part of the rolling machine. Its upper roller diameter is 130mm, the lower roller diameter is 120mm, and the working length is 1600mm.
The frame is divided into a left frame and a left frame, which are fixed on the base with bolts, and the reducer is driven by a motor to drive the lower roller$3,200.00
